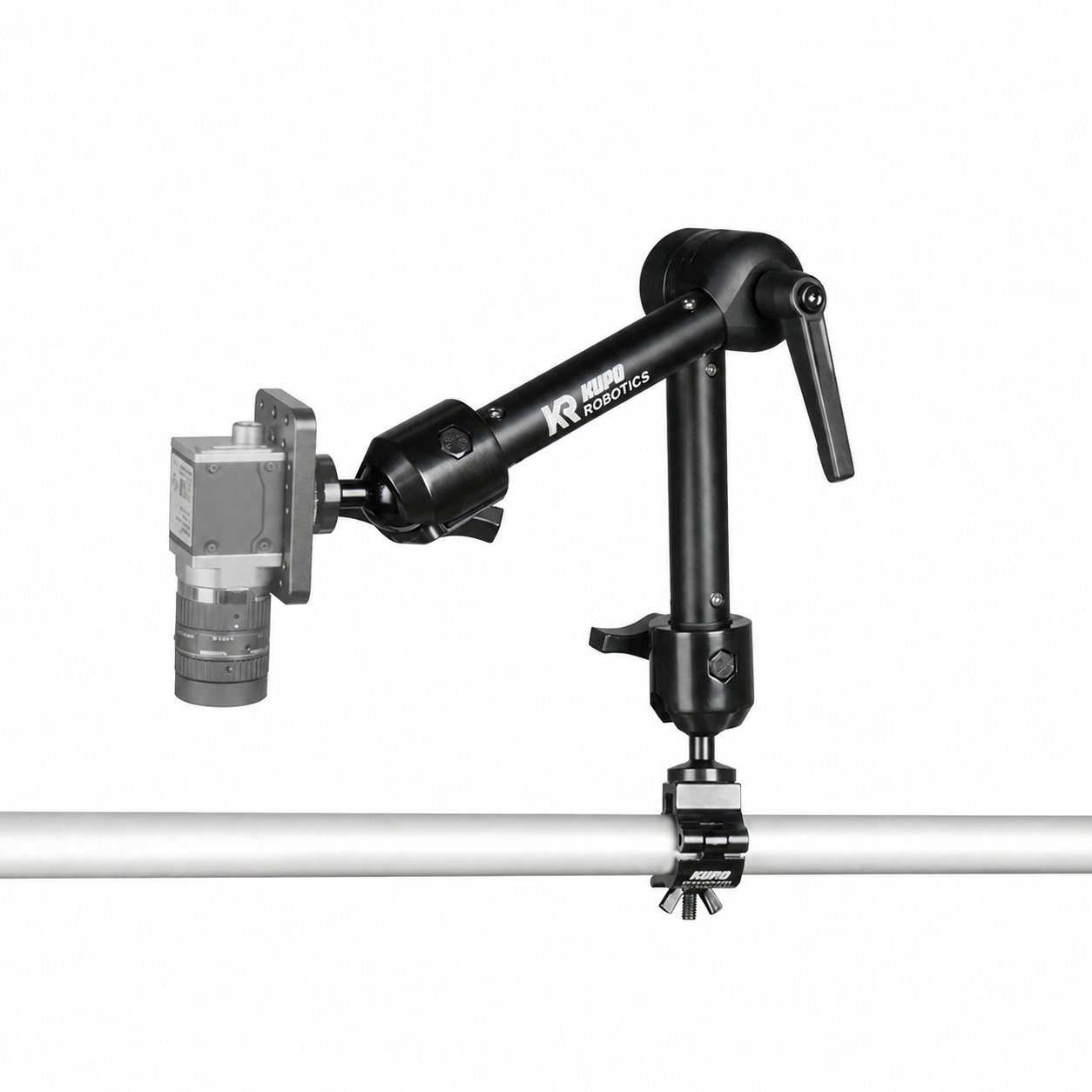

The KR VisionReach 22 Omni 20 cm is the mount that brings a camera, light, sensor, or monitor out from a VisionGrid 22 Pro frame to where it needs to look. It clamps to the 22 mm tube, gives you a controlled Omni arm for positioning, and ends in a standard ¼"-20 screw for your device.

The Omni gives full 360° rotation and a 90° pivot for precise aiming, with an interchangeable ball-head socket at each end and anti-slip rosettes that lock the joint so a set angle holds without creeping. A ratcheted handle makes locking quick.

At 20 cm / 7.9 in it is the shortest Omni length - and the stiffest, highest-capacity, and most stable of the Omni lengths. For most camera work on a VisionGrid 22 Pro bench, this is the right first choice: it gives the steadiest hold and carries the most payload of the Omni lengths.

A generic arm can hold a device for a while. VisionReach is built for setups that keep changing - you reposition the camera, swap the light, adjust the angle - without the arm slipping, twisting, or drifting out of position.

It's a known, reusable mounting path: a defined base that fits your frame, a defined arm class with a real load figure, and a standard device screw. When the layout changes, you adjust the arm instead of rebuilding the mount. If your camera needs a special interface, keep this as the standard mounting path and make only the device-side adapter plate custom - the rest stays reusable.

This kit is the middle link of the chain - it connects your 22 mm VisionGrid Pro tube to your device's ¼"-20 thread, base and arm included:

¼"-20 is the common camera/accessory thread. "Male" means this kit provides the screw; your device or adapter plate needs the matching female thread. If the image must stay level and can't twist on a single screw, add a locating pin or anti-rotation plate.

Choose Omni when you want a repeatable, locked angle - its anti-slip rosettes index to a set tooth position and return to it, so a camera holds the angle you set. Choose Super Knuckle when you want fast, freehand positioning - its friction ball joints glide smoothly to any angle and lock with a single knob, and it offers a wider range of accessories. They simply hold differently: the Omni for an exact, repeatable angle, the Super Knuckle for quick, free movement.

This Omni reaches 20 cm / 7.9 in and carries up to 8 kg / 17.6 lb close to the clamp - the highest capacity of the Omni lengths - derating as the payload moves toward the tip or off-center. It locks to a repeatable indexed angle for static positioning and is not vibration-rated, so re-check the hold after heavy use.

• Reach: 20 cm / 7.9 in nominal.
• Close-in working load: up to 8 kg / 17.6 lb - the highest of any Omni length.
• Best for: machine-vision cameras, lights, sensors, monitors, and accessory plates that should hold position.

Start with the shortest arm that reaches the target. The shorter Omni is cheaper, carries more load, and holds the image steadier - every extra centimeter of reach costs you money, payload capacity, and stability. The 8 kg figure is a close-in reference for the arm; usable load still depends on payload position, mounting angle, vibration, and cable pull. Secure the cable to the frame before judging stability - cable drag can shift a camera even within the load range.

VisionReach 22 Omni 20 cm is at its best for close-in, position-critical camera and light work on a VisionGrid 22 Pro bench - where a short, stable reach and a locked, repeatable angle beat wide coverage.

• Close-in camera and light positioning where the image must stay put.
• Controlled manual positioning in integrator labs and prototype cells.
• Accessory placement where a short, stable reach beats wide coverage.
• Cable-managed setups within the arm's load range.

The kit ships as three reusable parts - the sliding base, the 20 cm / 7.9 in Omni arm, and the ¼"-20 male device screw - and nothing device-specific.

• VisionReach 22 tube clamp base for the 22 mm VisionGrid Pro tube.
• Omni 20 cm / 7.9 in adjustable arm.
• ¼"-20 male device screw.

Not included unless bundled: the camera, lens, light, sensor, monitor, or controller; a camera-specific adapter plate; the VisionGrid frame itself; and cable strain-relief hardware.

Before ordering, confirm four things: a 22 mm VisionGrid Pro tube, a ¼"-20 female device thread, payload and cable pull suited to a 20 cm / 7.9 in reach, and a reviewed path if the setup is vibration-prone or production-bound.

• Confirm your frame is a 22 mm VisionGrid Pro tube (not 16 mm rail, 35 mm post, or extrusion).
• Your device needs a ¼"-20 female thread, or an adapter plate that gives it one.
• Check that payload weight, center of gravity, and cable pull suit the 20 cm reach.
• If the setup is vibration-prone, overhead, in a moving-machine area, or headed for production, talk to us about a reviewed mounting path first.
